What is a Quartz Boat?

A quartz boat is a high-purity container made from fused quartz, widely used for holding wafers, substrates, or materials during thermal processing. Known for its exceptional resistance to high temperatures and chemical corrosion, a quartz boat maintains structural integrity even in extreme environments. It is a standard fixture in cleanroom manufacturing and laboratories, especially in the semiconductor, photovoltaic, and material research fields.

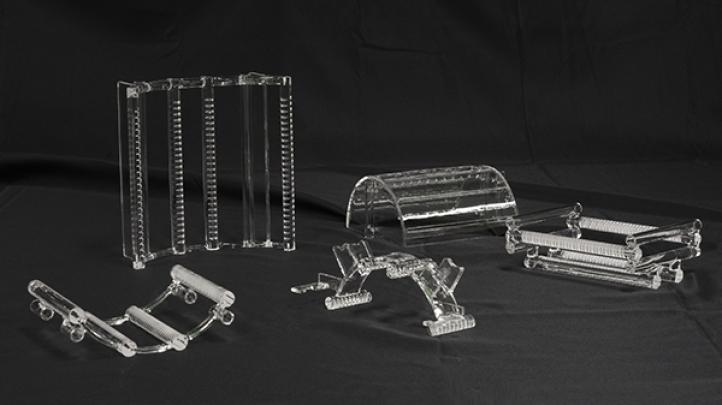

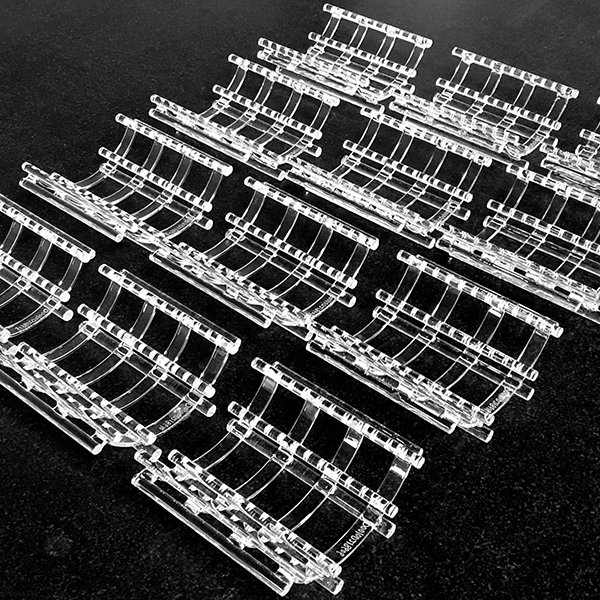

Quartz boats are typically shaped as U-type, V-type, or custom geometries, depending on specific process requirements. Their transparency and low thermal expansion make them ideal for precision applications.

Quartz Boats in Semiconductor Industry

In semiconductor fabrication, quartz boats play a crucial role during processes such as diffusion, oxidation, LPCVD (Low Pressure Chemical Vapor Deposition), and annealing. These processes require ultra-clean environments and stable thermal behavior, both of which quartz delivers reliably.

During wafer processing, the quartz boat holds silicon wafers vertically, ensuring uniform exposure to gases or heat. Its non-reactive nature helps maintain wafer purity, reducing defect rates and improving product yield. Furthermore, quartz boats are compatible with automated loading systems in modern fabs, making them indispensable to high-volume manufacturing.

Why Choose Quartz Over Other Materials?

When selecting materials for high-temperature, high-purity applications such as semiconductor processing, the choice often narrows down to quartz, ceramics (like alumina), or standard borosilicate glass. However, quartz remains the preferred material — and for good reasons.

First, quartz offers an unmatched combination of thermal and chemical stability. It can withstand temperatures above 1000°C without significant structural change, making it ideal for processes like oxidation and LPCVD. In contrast, borosilicate glass may soften or deform under such extreme conditions, and even high-performance ceramics may be prone to thermal stress cracking if not handled carefully.

Second, quartz exhibits exceptional chemical purity. With fewer metallic impurities than ceramics or standard glasses, quartz minimizes the risk of ion contamination — a critical concern when dealing with sub-micron features on silicon wafers. This is particularly vital in the production of advanced nodes where even trace contaminants can ruin entire wafer batches.

Moreover, quartz's low thermal expansion ensures dimensional stability during rapid temperature shifts. This reduces mechanical stress on wafers and equipment, ultimately contributing to process reliability. Additionally, its optical transparency — while not necessary in all processes — is a valuable bonus for monitoring or aligning wafers without removing the boat.

Key Benefits of Using Quartz Boats

Exceptional Thermal Stability

Quartz boats can endure temperatures above 1000°C without warping or degrading, making them ideal for high-temperature processes like diffusion, oxidation, and annealing. This thermal stability ensures long-term reliability under repeated heating cycles.

Ultra-High Purity

Made from high-purity fused silica, quartz boats introduce minimal contamination to wafers. Their low metal and ionic impurity levels are critical in semiconductor production, especially at advanced nodes where even trace contaminants can impact yield.

Dimensional and Mechanical Precision

Quartz's low thermal expansion allows quartz boats to maintain their shape and alignment during rapid temperature changes. This stability helps prevent wafer slippage, misalignment, and mechanical stress on both wafers and equipment.

Process Versatility

Quartz boats are compatible with a wide range of semiconductor processes, including LPCVD, oxidation, and annealing. Their adaptability allows fabs to use the same tooling across multiple steps, improving operational efficiency.

Automation-Ready Design

Engineered with precision tolerances, quartz boats integrate seamlessly with robotic wafer handling systems and cleanroom automation setups, supporting consistent throughput and minimizing manual handling risks.

FAQs

Q1: Can quartz boats be reused?

Yes, with proper handling and cleaning, quartz boats can be reused multiple times without losing performance.

Q2: How to clean quartz boats?

Use acid baths or ultrasonic cleaning in accordance with cleanroom standards. Avoid sudden temperature changes during cleaning.

Q3: Are quartz boats compatible with all furnace types?

Quartz boats are compatible with most horizontal and vertical furnaces used in semiconductor and photovoltaic processing.

Q4: What sizes are available?

Standard sizes are available for 100mm, 150mm, 200mm, and 300mm wafers, with customization options for specialized needs.
